7000 Series Aluminum Alloy Pipe
7055-T6 Aluminum Alloy
7075-T6 Aluminum Alloy
Custom Solution
Guoxin manufactures aluminum alloy pipes, rods and profiles in the grade of 1000 series to 7000 series, please tell us your needs like aluminum alloy grade, specifications and heat treatment of this 7000 series aluminum alloy, our company can provide custom aluminum alloy process solution according to the customer demands.
For more information about aluminum and aluminum alloy grade used by different countries, please click here for reference: Aluminum Grade
Our Aluminum Extrusion Press, for making Seamless Pipes with diameters as follows:
| Equipment |
Product |
Outer diameter |
Inner diameter |
| 100MN double-action direct extrusion press |
aluminum alloy seamless pipe |
225-507mm |
195-435mm |
| 55MN double-action indirect extrusion press |
aluminum alloy seamless pipe |
70-265mm |
50-254mm |
| 28MN double-action indirect extrusion press |
aluminum alloy seamless pipe |
70-137mm |
35-125 |
| 1880UST double-action direct extrusion press |
aluminum alloy seamless pipe |
28-88mm |
14-78mm |
| 1100UST double-action direct extrusion press |
aluminum alloy seamless pipe |
25-64mm |
3-55mm |
Recommend Aluminum Alloy Products
7075 Aluminum Alloy Pipe
7075 aluminum alloy is for fabricating aircraft frame, molds, and high-stress structural parts with high strength and corrosion resistance.
| Alloy |
Major alloying element (mass fraction) (%) |
| Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Others |
| 7075 Aluminum Alloy |
0.40 |
0.50 |
1.2-2.0 |
0.30 |
2.1-2.9 |
0.18-0.28 |
5.1-6.1 |
0.2 |
single: 0.05; total: 0.15 |
| Alloy |
Mechanical and physical properties |
| tensile strength (25°C) (MPa) |
yield strength (25°c) (MPa) |
hardness 500kg 10mm |
elongation 1.6mm(1/16in) thickness |
max shear stress (MPa) |
| 7075-T651 Aluminum Alloy |
572 |
503 |
150 |
11 |
/ |
| weldability |
machinability |
corrosion resistance |
electricity conductivity 20℃(68℉) (％IACS) |
density
(20℃)(g/cm3) |
| / |
/ |
/ |
/ |
2.82 |
The Recommend Products also as follows:
| Aluminum Alloy Products |
Applications |
|
| 7050 Aluminum Alloy Pipe |
7050 aluminum alloy is for making aircraft structural parts such as thick aluminum alloy plates, extrusion parts, custom shaped forgings and die forgings. This kind of aluminum alloy has high resistance to corrosion, resistance to stress corrosion cracking, and fatigue resistance, as well as high fracture toughness. |
Inquiry |
| 7A04 Aluminum Alloy Pipe |
7A04 aluminum alloy is for making aircraft skin, screws, and heavy load structural parts like beam girder, frame, wing ribs, alighting gear, etc. |
Inquiry |

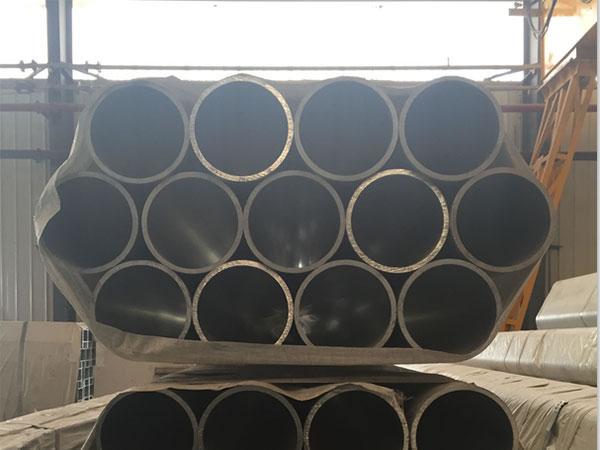

Guoxin can offer 7000 Series Aluminum Alloy Pipes as follows:
7075 Aluminum Alloy Pipe
| Alloy |
Major alloying element (mass fraction) (%) |
| Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Al |
| 7075 Aluminum Alloy |
0.4 |
0.5 |
1.2~2.0 |
0.3 |
2.1~2.9 |
0.18~0.28 |
5.1~6.1 |
0.2 |
the rest part |
7A04 Aluminum Alloy Pipe
| Alloy |
Major alloying element (mass fraction) (%) |
| Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Al |
| 7A04 Aluminum Alloy |
0.5 |
0.5 |
1.4~2.0 |
0.2~0.6 |
1.8~2.8 |
0.1~0.25 |
5.0~7.0 |
0.1 |
the rest part |
7005 Aluminum Alloy Pipe
| Alloy |
Major alloying element (mass fraction) (%) |
| Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Al |
| 7005 Aluminum Alloy |
0.35 |
0.4 |
0.1 |
0.2~0.7 |
1.0~1.8 |
--- |
4.0~5.0 |
0.01~0.06 |
the rest part |
7039 Aluminum Alloy Pipe
| Alloy |
Major alloying element (mass fraction) (%) |
| Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Al |
| 7039 Aluminum Alloy |
0.3 |
0.4 |
0.1 |
0.1~0.4 |
2.3~3.3 |
0.15~0.25 |
3.5~4.5 |
--- |
the rest part |
7049 Aluminum Alloy Pipe
| Alloy |
Major alloying element (mass fraction) (%) |
| Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Al |
| 7049 Aluminum Alloy |
0.4 |
0.5 |
1.2~1.9 |
0.5 |
2.1~3.1 |
0.05~0.25 |
7.2~8.4 |
--- |
the rest part |
7072 Aluminum Alloy Pipe
| Alloy |
Major alloying element (mass fraction) (%) |
| Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Al |
| 7072 Aluminum Alloy |
0.35 |
0.4 |
0.2 |
0.05~0.5 |
1~1.4 |
0.1~0.35 |
4~5 |
--- |
the rest part |
7175 Aluminum Alloy Pipe
| Alloy |
Major alloying element (mass fraction) (%) |
| Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Al |
| 7175 Aluminum Alloy |
0.15 |
0.2 |
1.2~2.0 |
0.1 |
2.1~2.9 |
0.18~0.28 |
5.1~6.1 |
0.1 |
the rest part |
7178 Aluminum Alloy Pipe
| Alloy |
Major alloying element (mass fraction) (%) |
| Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Al |
| 7178 Aluminum Alloy |
0.4 |
0.5 |
0.6~2.4 |
0.3 |
2.4~3.1 |
0.18~0.28 |
6.3~7.3 |
0.2 |
the rest part |
7475 Aluminum Alloy Pipe
| Alloy |
Major alloying element (mass fraction) (%) |
| Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Al |
| 7475 Aluminum Alloy |
0.1 |
0.12 |
1.2~1.9 |
0.06 |
1.9~2.6 |
0.18~0.25 |
5.2~6.2 |
0.06 |
the rest part |
